Brief:

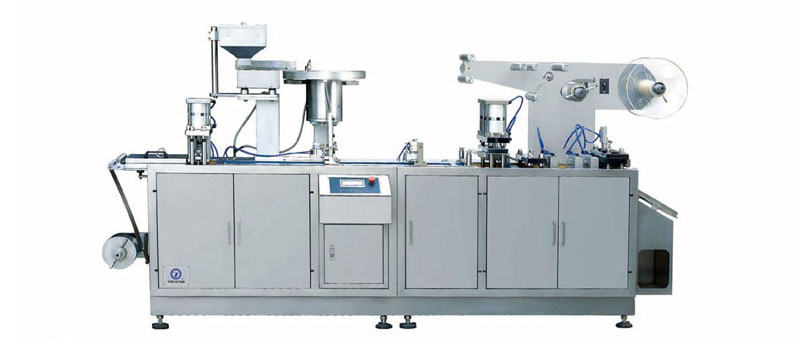

This machine is widely used for packing tablets, capsules and other similar shape solid articles with alu-plastics & alu-alu blister in pharmaceutical, chemical,foodstuff industries. The machine can finish the following actions automatically: Aluminium foil or Plastic (PVC) blister forming , automatic material feeding.PTP alu-foil press and heat-sealing, press the batch number & perforation and punching.
Features:
■Temperature control detection for heating plate, overload protection for main motor, packaging material level detection for forming alu-foil (PVC) and PTP-lid alu-foil.
■Mechanical friction wheel speed reduction and regulation, which is superior to mechanical constant-ratio speed reducer in speed regulation and driving.
■Adopt four-working station (forming, sealing,perforation, punching) coaxial driving (integral key) to improve driving strength and absolute synchrony in working.
■Machine adopt opened structure, working status of each functional part is viewable well,and it is easy and convenient to adjust and maintain.
■Adopt modular moulds, it is easy and convenient to install, adjust and change over the mould. It's suitable for packing various products. Mould cost is lower.
■Speed controlled by frequency inverter, the stroke can be adjusted under the stroke range.
■Adopt PLC +touch screen control system, can indicate the trouble cause, it's easy to operate and maintain.
■Both alu-alu and alu-plastics blister packaging can be realized via change the concerned parts.
■The photoelectric register device (Optional) can be equipped, make the blister sheet more beautiful.
